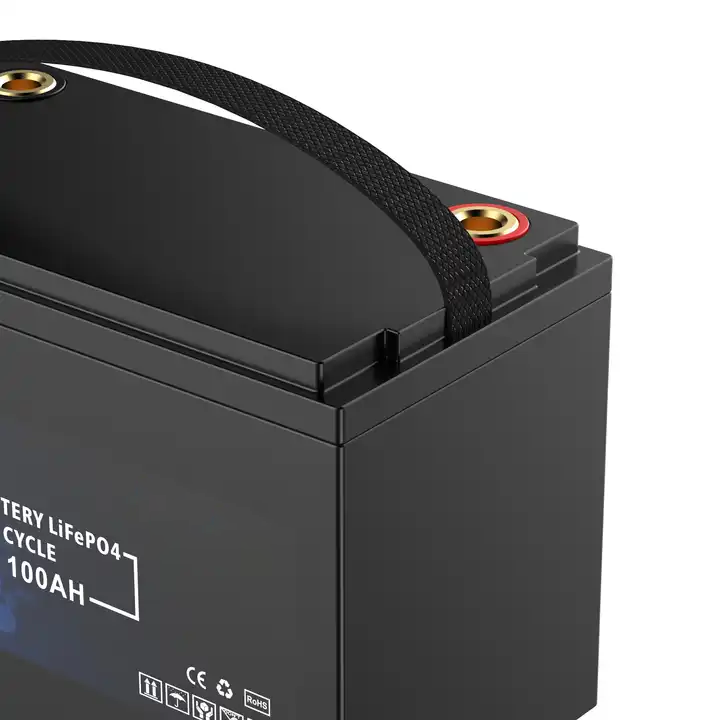

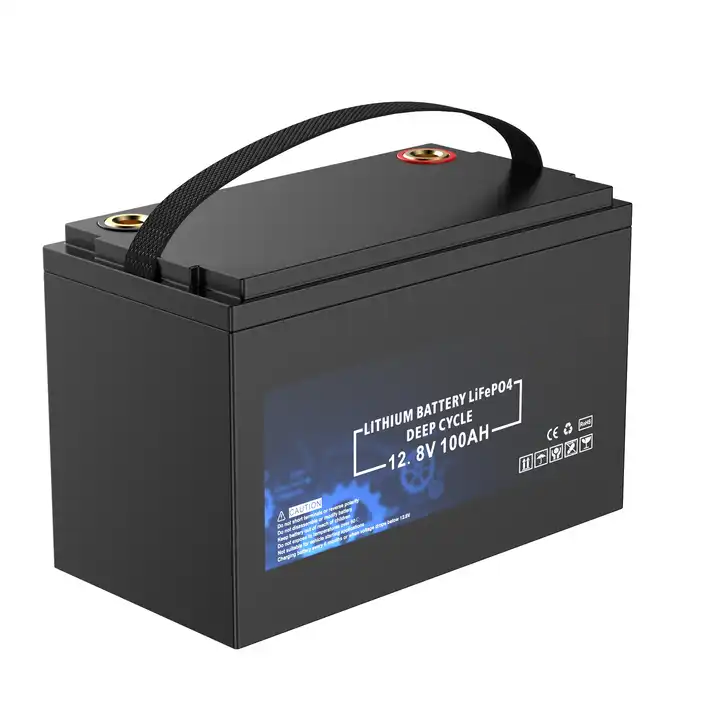

BMS dahili uzun ömürlü LiFePO4 12V 100Ah Pil

2023-11-07 05:54

Şartname

12V 100Ah LifePO4 Battery Pack With 100A BMS
Electric	Nominal gerilim	12,8V
	Nominal kapasite	100Ah
	Stored energy	1280wh
	Hayat döngüsü	6000 times (Cycle @RT, 1C rate,85%D\OD)
	Yapılandırma	4S1P
	Self discharge	< 3% per month
Standart Şarj etmek	Şarj yöntemi	CC/CV : Constant Current / Constant Voltage
	End-of charge voltage	14.6V
	Sürekli şarj akımı	50A
	Maximum charge current	70A
Standart Deşarj	Sürekli deşarj akımı	100A
	Maximum discharge current (< 3s)	150A (3S)
	End-of discharge voltage	9.2V
Environment	Charge temperature range	0°C to +50°C
	Discharge temperature range	-20 ℃ ~ 55
	Depolama sıcaklığı	0°C- +50°C @60±25% relative humidity
Mekanik	Cell assembly	3.2v 100ah prismatic LifePO4
	Casing material	ABS Case
	boyutlar	özelleştirme
	Ağırlık	12kg
	terminal	M8
	Battery Protection Management System BMS Fonksiyonu	Built-in 100A BMS Automatic Functions Low Voltage Disconnect Short Circuit Protection Over Voltage Protection Over Current Protection Aşırı Şarj Koruması Over Discharge Protection Over Temperature Protection Internal Cell Balancing
Garanti	5 Years warranty, In use process, if the product quality problems will be free replacement parts.Our company will replace any defective item free of charge.
Uygulama	Solar Energy,Solar Street Light,Wind Energy,Household Energy,RV campers, Marine,Trolling Motor, Replace lead-acid batteries, LED light, Backup battery, Power battery.
OEM / ODM	Sticker/ Logo/ package / connector
Sertifikasyon	CE, MSDS and UN38.3, etc

AIN12-100 LifePO4 battery pack use the grade A  LifePO4 battery, whose life span is 10 times longer than the traditional lead acid batteries, and it is lighter. For the capacity, Lifepo4 batteries can provide twice the battery capacity in the same amount of space. With operating ranges from -40 to 158 degrees Fahrenheit, LifePO4 handle far wider variations in temperature.

Uygulama

AIN-12 series battery pack can provide power for various equipment, such as the golf carts, RV, electric boat, street light and etc. With high capacity, which can meet all kinds of demands.

♦ Güneş-Rüzgar Enerjisi Sistemi
♦ Power tools: electric drills, toys Energy Storage
♦ City Grid (On/Off) Back-up solar System and UPS
♦ Güvenlik ve Elektronik, Mobil POS, Madencilik Lihgt / Torch / LED Işık / Acil Durum Işığı
♦ Telcom Base, CATV sistemi, Computer Server Center, Medical Instrumnt, Military Equipment Other Applications
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel
chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.



Şirketimiz

Paketleme ve Nakliye

Teslimat süresi
Normally delivery within 7-20days, but can arrange in advance if order confirm or produce faster according to quantity or other reason.
Ödeme
1. We accept T/T , PAYPAL , Western Union, Cash and so on

2. FOB , EXW and CIF all are available
3. Samples can accept Paypal.
Shipping way
DHL, UPS, FedEx, Special Line, Sea shipping, Customer own forwarder

SSS

Q1: Can I get free samples?

A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.

Q2: If we place an order, how long is the delivery time?

A2: It depends on the order quantity. Usually, for small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.

Q3: What are your payment and delivery terms?

A3: Payment terms: via T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.

Q4: Which company will be used for shipment, DHL, UPS or others?

A4: Usually, we ship batteries via DHL, UPS and FedEx.

Q5: What kind of packages do you ship? Can I have a customized package?

A5：We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by the buyer, for more details, please contact us.

Q6: Your factory or trading company?

A6: We are a professional battery manufacturer with our own factory and brand. We provide various OEM / ODM services to our customers all over the world.

Q7： Where is your company's main market?

A7: Our company focuses on North America, Europe, Korea and Japan market for high quality batteries.

Q8: What are your advantages compared to other suppliers?

A8 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and make sure the quality is approved by customers.

A8 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. We provide the best project solution for our customers. We ship on time.

S9: Sipariş vermeden önce fabrikanızı ziyaret edebilir miyiz?

A9: Of course no problem, we are always welcome to visit our factory.
