Golf arabası RV camper için özelleştirilmiş derin döngüsü 36V 48V 72V 50ah 80ah 100ah lityum pil

2024-03-15 02:39

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION
Data sheet	Nominal Gerilim	Nominal kapasite	Nominal Energy	boyut	Ağırlık
36V  (Support Customized Capacity/Size)
LFP36-50	38.4V	50Ah	1920Wh	522*238*218mm	≈18.5kg
LFP36-60	38.4V	60Ah	2304Wh	522*238*218mm	≈21kg
LFP36-80	38.4V	80Ah	3072Wh	522*238*218mm	≈25.5kg
LFP36-100	38.4V	100Ah	3840Wh	522*238*218mm	≈31kg
48V  (Support Customized Capacity/Size)
LFP48-50	51.2V	50Ah	2560Wh	522*238*218mm	≈25kg
LFP48-60	51.2V	60Ah	3072Wh	522*238*218mm	≈31kg
LFP48-80	51.2V	80Ah	4096Wh	522*238*218mm	≈32.5kg

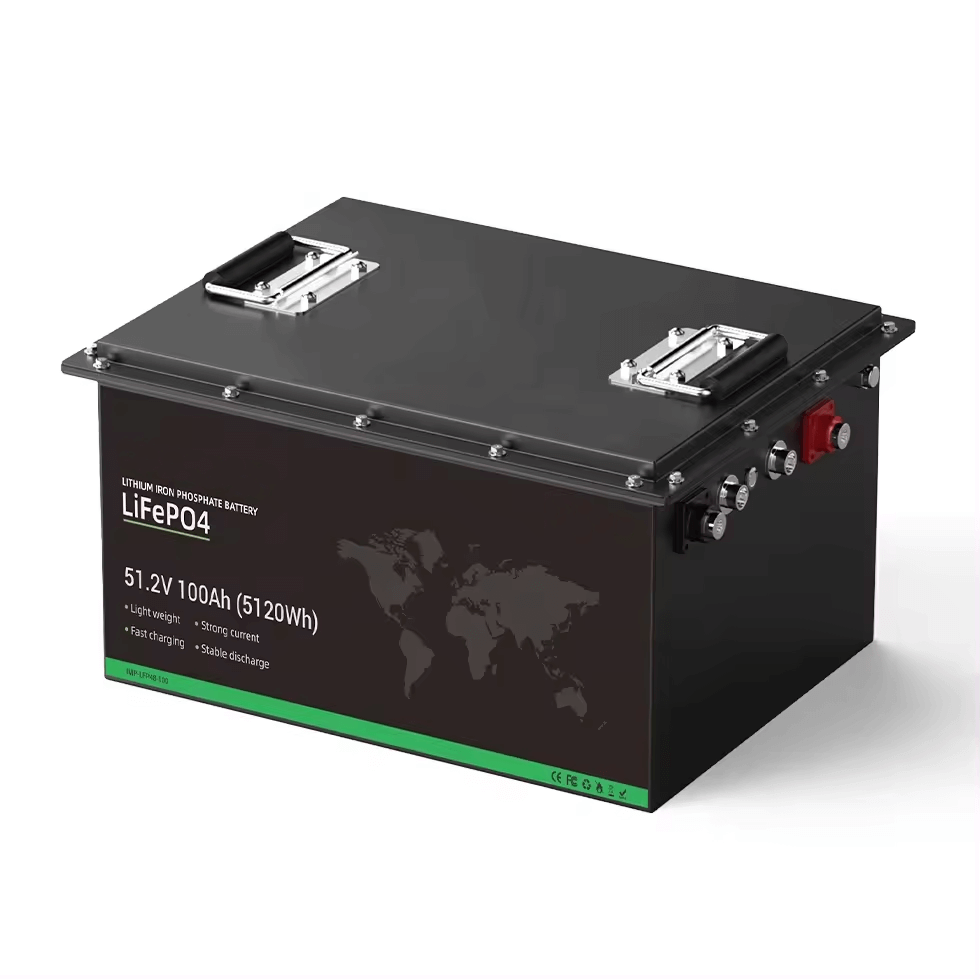

LFP48-100	51.2V	100Ah	5120Wh	640*245*220mm	≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-50	76.8V	50Ah	3840Wh	470*330*150mm	≈50kg

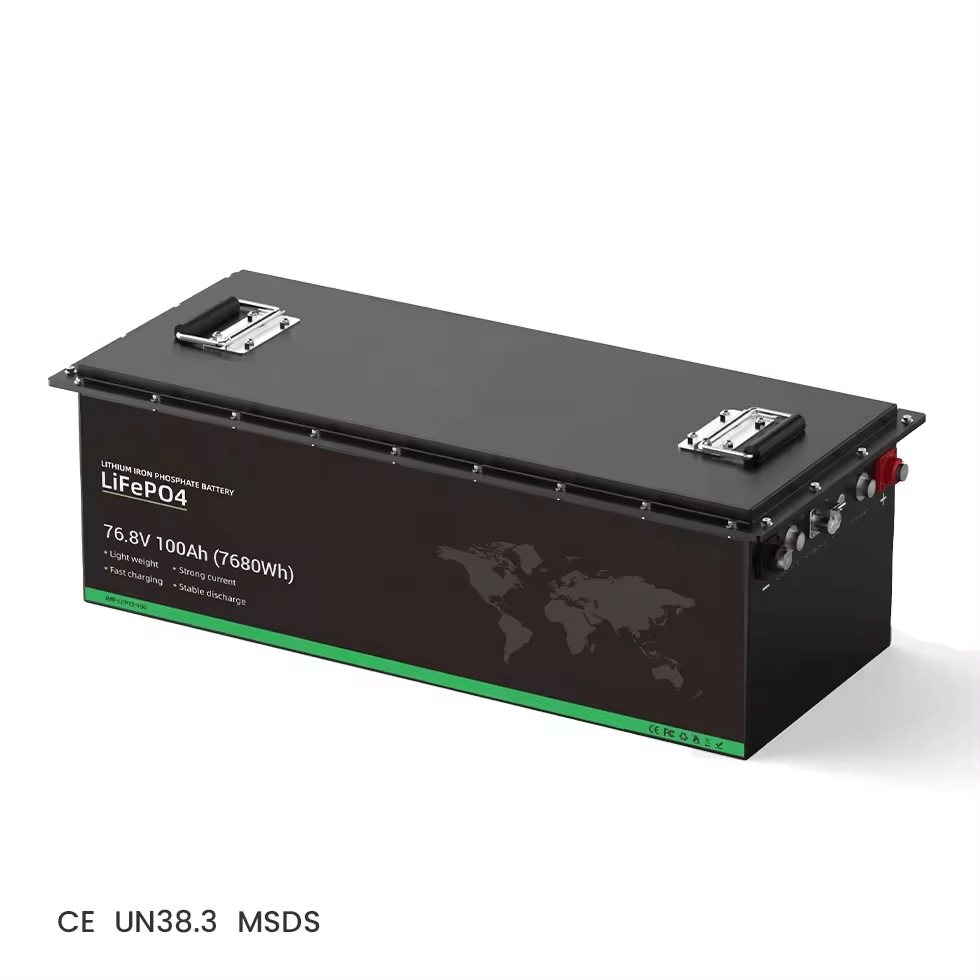

LFP72-100	76.8V	100Ah	7680Wh	730*350*150mm	≈65kg
General
Yaşam döngüsü		≥6000 cycles (80%DOD), at 25°C
Şarj Sıcaklığı		0 ~ 45°C (32 ~ 113°F)
Boşaltma Sıcaklığı		-20 ~ 55°C(-4 ~ 131F)
Depolama sıcaklığı		-10 ~ 45°C(14 ~ 113°F)
Communication Mod		Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Verim

1. Single battery operation
2. Little or no voltage drop
3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

1. No acid fumes or spills
2. Reduce use of electricity
3. Less waste
4. 99% recyclable

Uygulama

Fabrikamız



Nakliye ve Paketleme

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Büyük sipariş için AIR veya OCEAN ile gönderin.

SSS

S: Ticaret şirketi veya üreticisi misiniz?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

S: Test etmek için örnekler alabilir miyim? Ve örnek sipariş için teslim süresi nedir?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

S: OEM / ODM kabul ediyor musunuz?
A: Yes,it is available.We have OEM group to design battery case.

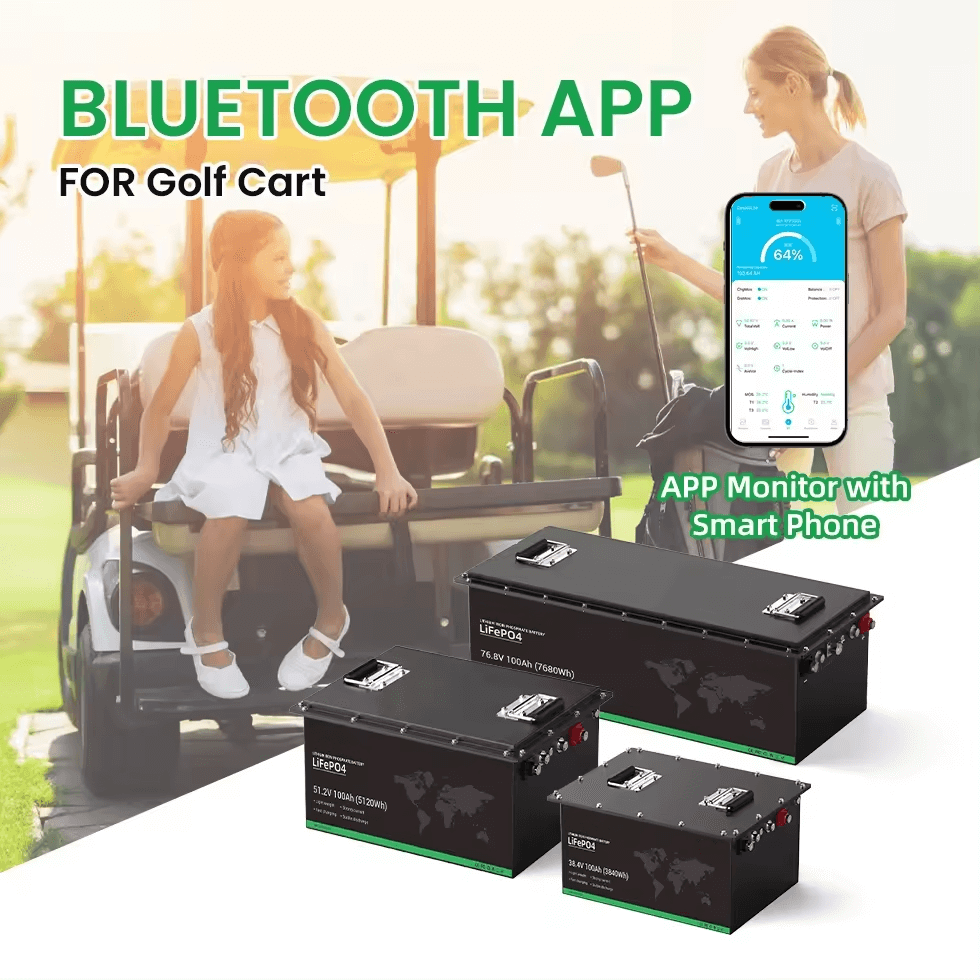

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
C: EVET, Uygulama her birinin voltajını istediğiniz zaman okumanıza izin verir.

S: Pilin gerçek kapasitesi var mı?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

S: Ne tür sertifikalarınız var?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

S: MOQ'unuz var mı?
C: Sınırlı değil. Küçük sipariş de hoş geldiniz.Daha fazla miktar daha iyi fiyata sahip, sizin için en iyi fiyatı kontrol edeceğiz.

S: Ödeme süreniz nedir?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
C: Pili uyandırmak için lityum şarj cihazlarının kullanılması. Lityum şarj cihazı pilleri otomatik olarak uyandırır.
